Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential. This is Electric All Mountain.
Use
Electric All Mountain
E-System
Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
Frame
Levo EVO FACT 11m carbon frame, Geo Adj & SWAT Storage
Suspension
Fork: 180mm RockShox Zeb Ultimate
Shock: Vivid Ultimate Air Linear
Drivetrain
SRAM X0 Eagle Transmission
Wheels
Traverse HD with DT Swiss 350 hubs
Â
Motor
Specialized 3.1 Motor, 105Nm torque, 810W power
Battery
840Wh battery
UI/Remote

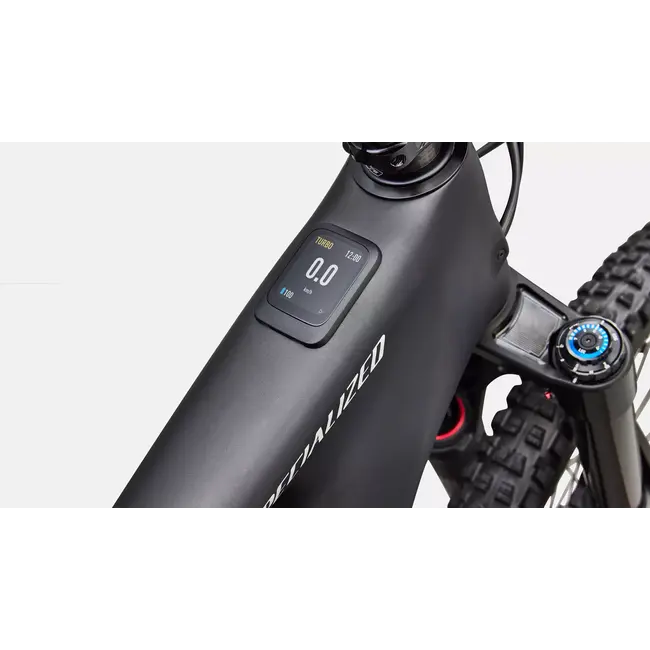

Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Charger
Specialized 4amp charger
Frame
Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage
Seat Binder
Alloy, 38.6mm

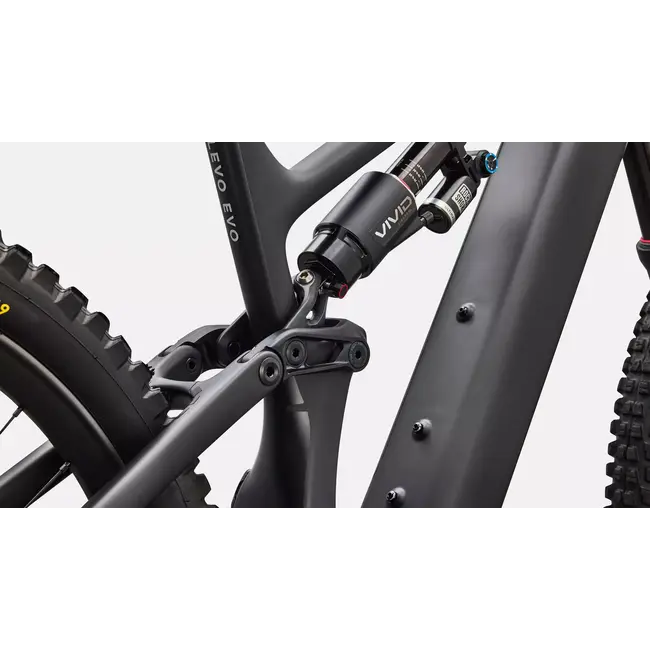

Rear Shock
All New Vivid Ultimate air, 230x62.5mm, Linear XL spring, RCT2 damper w/HSC and LCS adjust, and HBO adjust, rebound adjust
Fork
All New SRAM FS ZEB Ultimate, 29" 180mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust
Front Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor
Rear Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor
Shift Levers
SRAM AXS Pod Controller w/discrete clamp
Rear Derailleur
SRAM X0 Eagle Transmission
Cassette
SRAM XS 1295, 12 speed, 10-52
Chain
SRAM X0 Eagle Transmission 12-Speed Flattop Chain
Crankset
SRAM XO Alloy crank, 155mm, ISIS interface
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Front Tire
Butcher, GRID Gravity, T9, TLR, 29x2.4"
Front Wheel
Traverse HD Carbon 29" rim, DT Swiss 350, 29, 28H, carbon rim, 30mm inner width
Rear Tire
Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
Rear Wheel
Traverse HD 350, 27.5", 32H, carbon rim, 30mm inner width, DT Swiss 350 hub, 12x148
Inner Tubes
Standard, Presta Valve
Stem
Deity, 35mm clamp, 42mm length
Handlebars
Deity Speedway Carbon, 5-degree upsweep, 9-degree backsweep. S1-S2: 810 width, 30mm rise: S3-S6: 810 width, 50mm rise
Grips
Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
Saddle
Bridge Expert with MIMIC, Hollow Ti rails
SeatPost
Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm
SWAT
SWAT Internal downtube storage
Weight
24.4 kg (53 lb, 12.7 oz)
Weight Size
S4
