E-bike
- UI/Remote

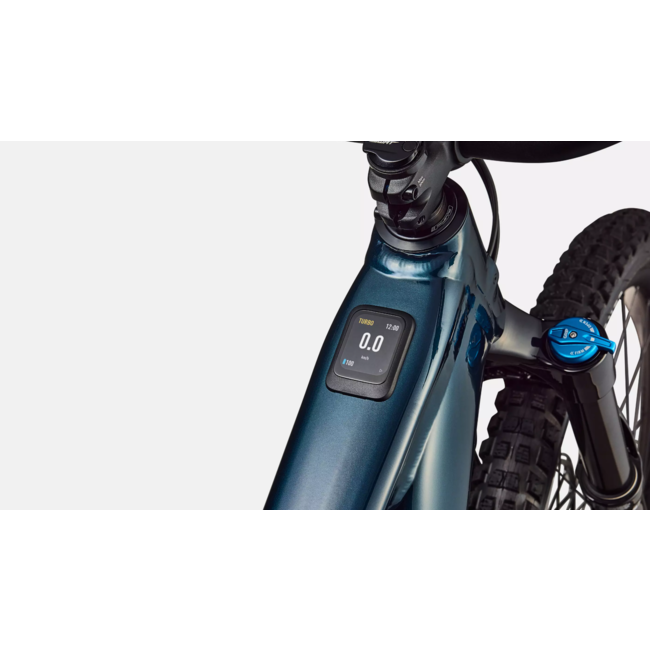

- All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App

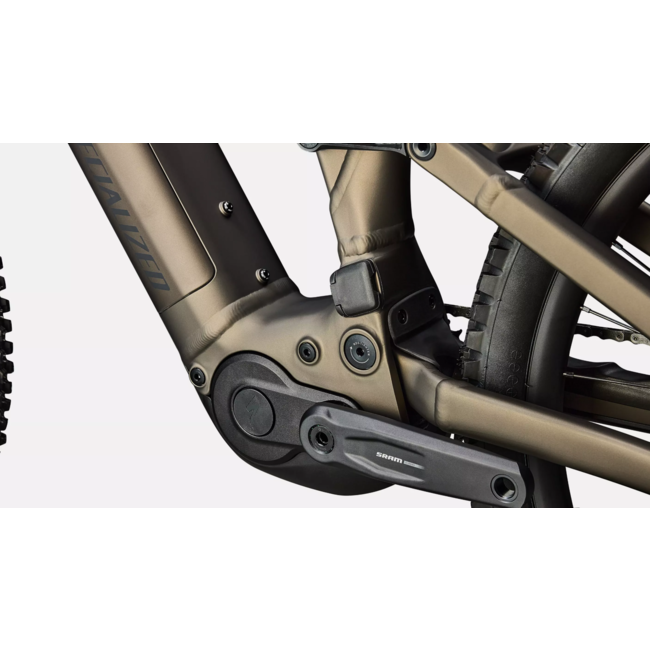

- Motor
- All New Specialized 3.1 Motor, 101Nm torque, 666Nm power
- Charger
- Specialized 4amp charger
- Battery
- 840Wh battery
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Suspension
- Rear Shock
- S2-S6: FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm, S1: FOX FLOAT Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/ LSR adjustment 210x55mm
- Fork
- FOX 36 Rhythm, 29", S2-S6: 160mm S1: 150mm, GRIP damper with Sweep adjust, 44mm offset, 15x110mm boost, through axle
Brakes
- Front Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
- Rear Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
- Cassette
- SRAM 1270 Transmission Cassette, 12 Spd,10-52t
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
- Chain
- SRAM 70 Transmission Chain
- Shift Levers
- SRAM 90 trigger, 12-speed, single click
- Rear Derailleur
- SRAM Eagle 90 T-Type
- Crankset
- SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Wheels & tires
- Rear Tire
- Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
- Front Tire
- Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
- Spokes
- DT Swiss Industry
- Front Hub
- Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
- Rear Hub
- Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
- Rims
- Specialized, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta valve
Cockpit
- Stem
- Alloy Trail Stem, 35mm bar bore

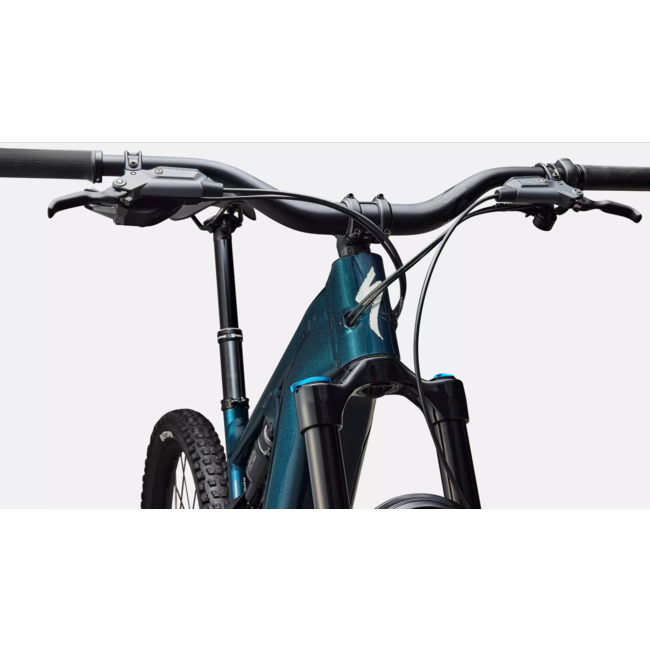

- Handlebars
- Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, S1-S2: 780mm width and 30mm rise, S3-S6 800mm width and 50mm rise
- Saddle
- Bridge Comp, Hollow Cr-mo rails 155/143
- Grips
- Specialized Trail Grips
- SeatPost
- X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4: 170mm, S5/S6: 190mm
Accessories
- SWAT
- SWAT internal downtube storage
Product details
- Product ID
- 221343
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 25.70 kg (56 lb, 11.2 oz)
- Weight Size
- S4
