Weight: 410g with pins (4 pins per side)
Thickness: 14.4mm (body), 26.8mm (binding)
Size: 80mm x 90mm (W x L)
Stance width: 57.5mm (center of clip to outside of crank face)
Float: 5° (12° release angle)
Cleats: SPD™ Compatible (includes 1mm cleat spacers for shoe fit tuning )
Bearing configuration: Inboard igus® Bushing and 3x outboard sealed cartridge bearings
Axle: Chromoly Steel with Black ED coating
Pins: Hollow M5x8mm threaded pins (self cleaning hex through hole)

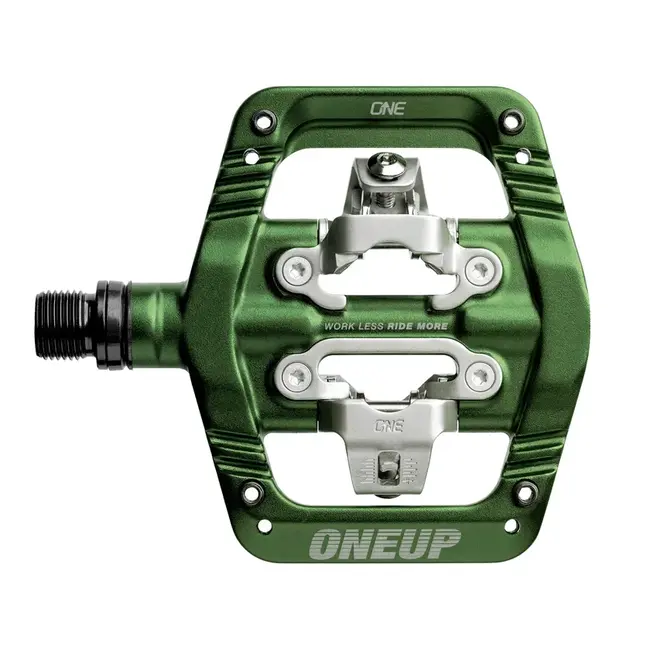

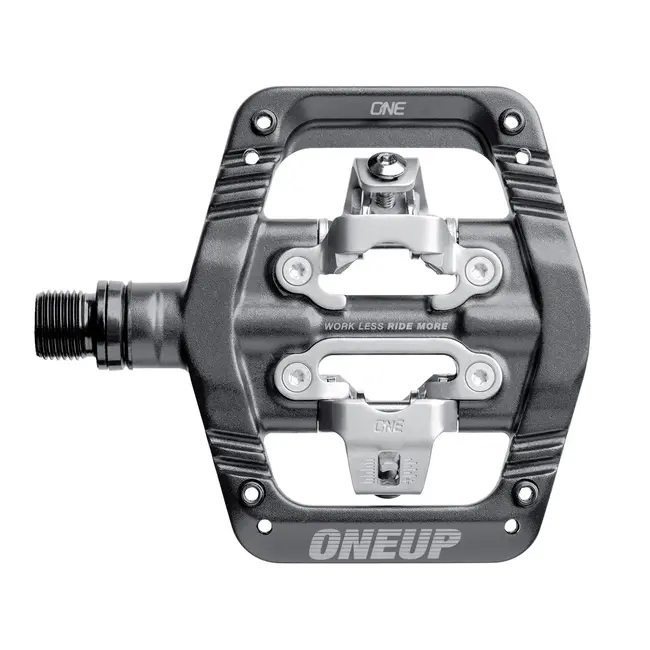

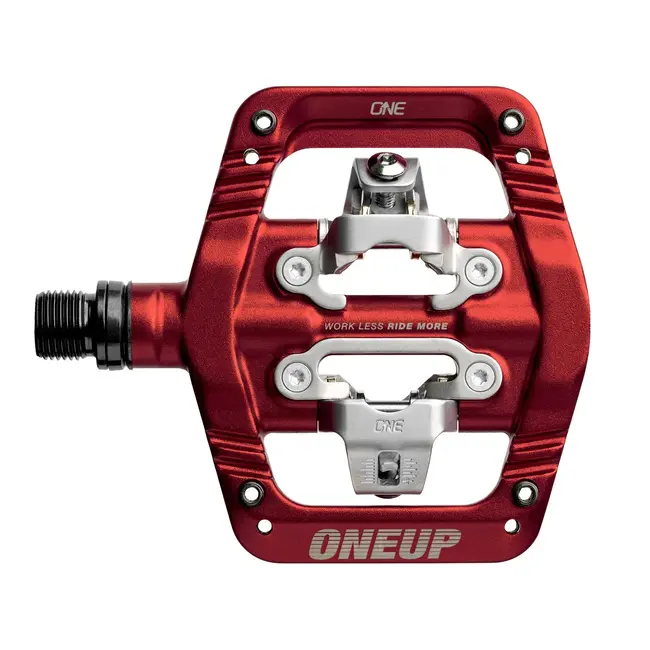

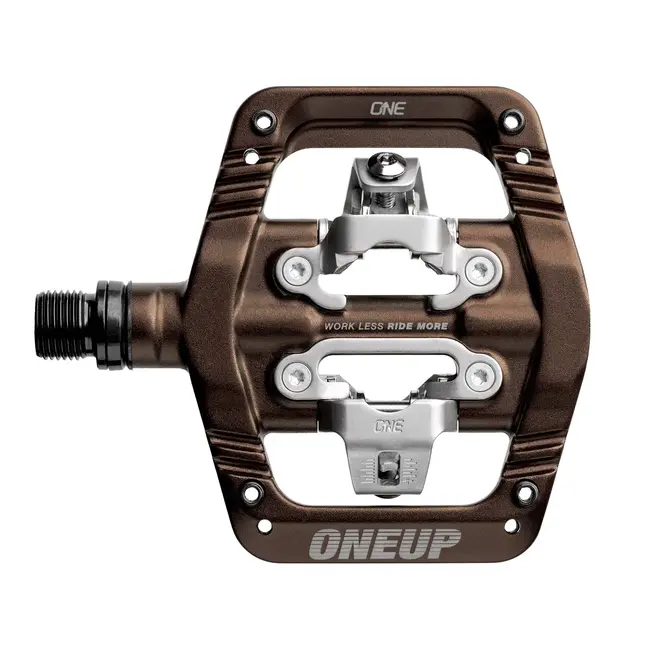

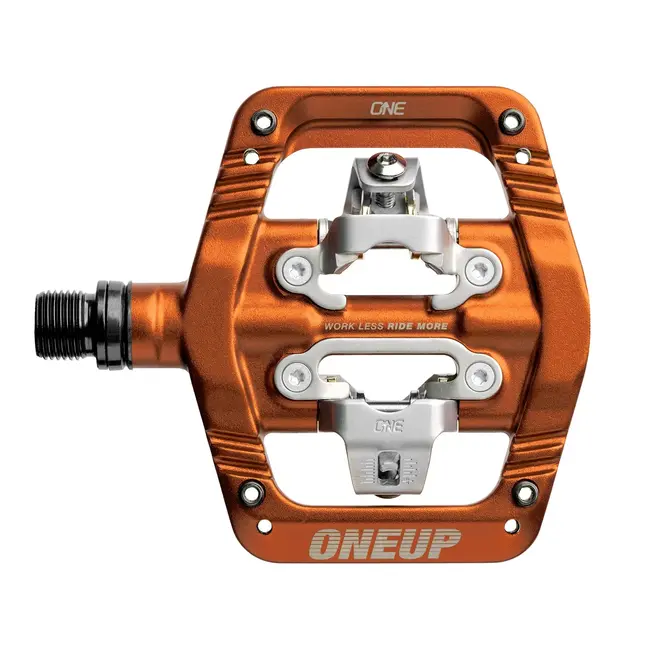

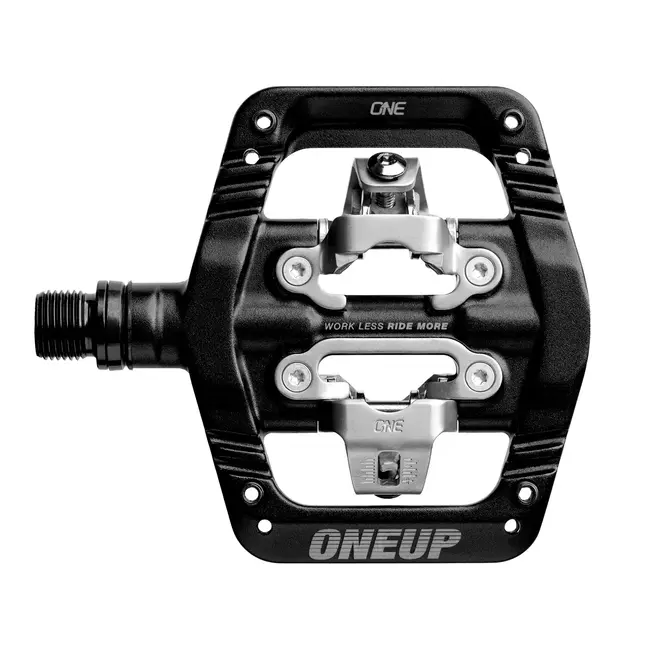

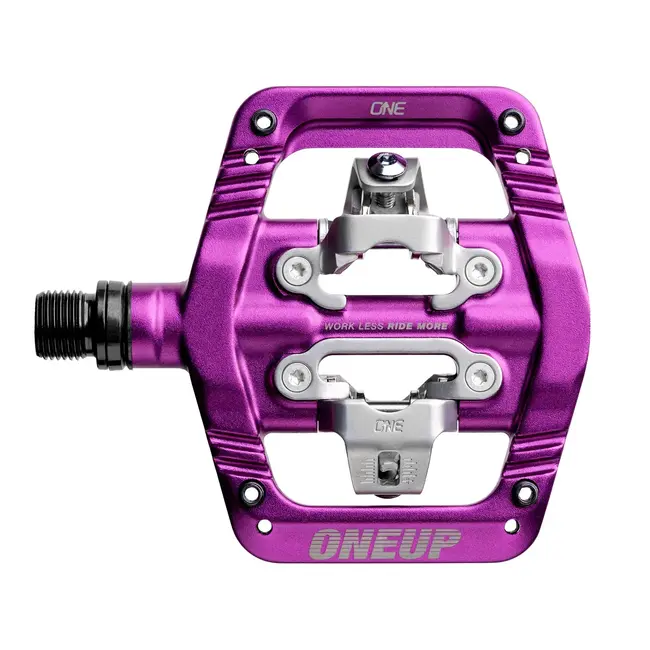

Colours: Black, Red, Green, Blue, Orange, Purple, Grey, Bronze
- Comes with SPD™ compatible cleats and 1mm cleat spacers for shoe fit tuning.
- Hollow, removable traction pins offer fine-tuning of grip and support, with a mud-clearing design that can be installed or removed from either side of the pedal.
- Included Pedal Bearing Nut Tool allows you to easily disassemble, clean, and grease your axle system.
- Custom, Stainless Steel, SPD™ Compatible Binding offers a locked-in feel with no unwanted play, and works with OneUp's own cleats and Shimano SPD™ cleats.
- 5 degrees of float and 12 degree release angle.
- 2 year manufacturer warranty.
- Wide-range release tension adjustability is secure enough for racers, yet forgiving enough for beginners, with an indicator to easily match the tension on all four bindings.
