VPSHP Suspension Platform
Designed around Norco’s VPSHP (Virtual Pivot Suspension | High Pivot) suspension layout, it increases rearward axle path to improve suspension performance in technical terrain, while retaining the dynamic and responsive feel that riders expect from a do-it-all All-Mountain bike.

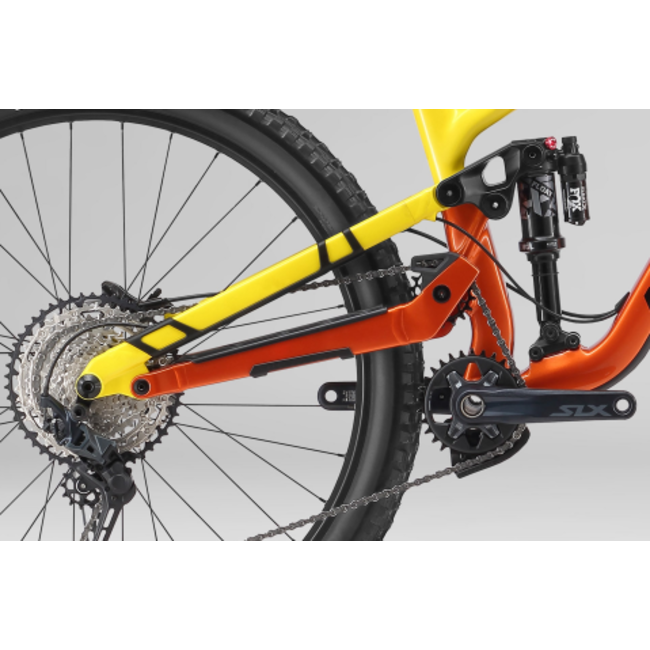

Through extensive testing using an i-track configured idler location, anti-squat has been tuned for efficiency and responsive feel under power. The idler mounted to the chainstay manages chain growth and pedal-kickback.
Swapping the linkarm and lower shock mount with our “Missing Link Kit” converts between 29” and 27.5” to let you pick the wheelsize that suits you best, while maintaining geometry and kinematics to ensure consistent fit and bike setup.
DETAILS
- 160mm/150mm of travel with 29" and MX options
- 29" and mixed wheelsizes
- Available in carbon and aluminum.
- VPSHP suspension platform.
- Norco Design Technology
- Exactly the speed you need when you need it.
- Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes.
- No Other Way Limited Lifetime Warranty.
| FRAME |
Sight Aluminum, VPS HP, 150mm Travel, UDH Compatible |
| FORK |
Fox FLOAT 36 Rhythm, Sweep Adjust, 160mm, 44mm Offset |
| REAR SHOCK |
Fox FLOAT X Performance, LSC LSR, 205x60mm Trunnion |
| REAR SHIFTER |
Shimano SLX SL-M7100-R |
| REAR DERAILLEUR |
Shimano SLX RD-M7100 |
| CRANKSET |
Shimano SLX HollowTech 2, FC-M7100, 32T, 170mm |
| BOTTOM BRACKET |
Shimano Sealed Bearing BSA Threaded |
| CASSETTE |
Shimano SLX CS-M7100-12, 10-51T, 12 Speed |
| CHAIN |
Shimano Deore CN-M6100 |
| CHAIN GUIDE |
Norco Idler Guide and Lower Guide |
| FRONT BRAKE |
Shimano Deore MT520 4 Piston, Metallic Pads |
| FRONT BRAKE ROTOR |
Shimano RT-64, 200mm |
| REAR BRAKE |
Shimano Deore MT520 4 Piston, Metallic Pads |
| REAR BRAKE ROTOR |
Shimano RT-64, 180mm |
| BRAKE LEVERS |
Shimano Deore MT-520 |
| HANDLEBAR |
6061 Alloy, 800mm, 25mm Rise |
| STEM |
Alloy, 40mm Length, 35mm Clamp |
| SEATPOST |
TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5) |
| HEADSET |
FSA #57 E Sealed Bearing |
| SADDLE |
SDG Bel Air V3 |
| GRIPS |
SDG THRICE |
| SEATPOST CLAMP |
Norco Alloy Nutted Clamp |
| FRONT HUB |
Shimano SLX 15x110mm Boost, Center Lock |
| REAR HUB |
Shimano SLX FH-M7110, Micro Spline, Center Lock |
| RIMS |
Stan's Flow D, Black 32H, 29"/29" |
| FRONT TIRE |
Maxxis Minion DHF 2.5", 3C, MaxxTerra / EXO+ / TR, Folding |
| REAR TIRE |
Maxxis Minion DHR II 2.4" WT, 3C, MaxxTerra / EXO+ / TR, Folding |
| SPOKES/NIPPLES |
Black Stainless |
| WEIGHT |
16.9 kg (37.3 lbs) |
| WEIGHT SIZE |
S3 |
