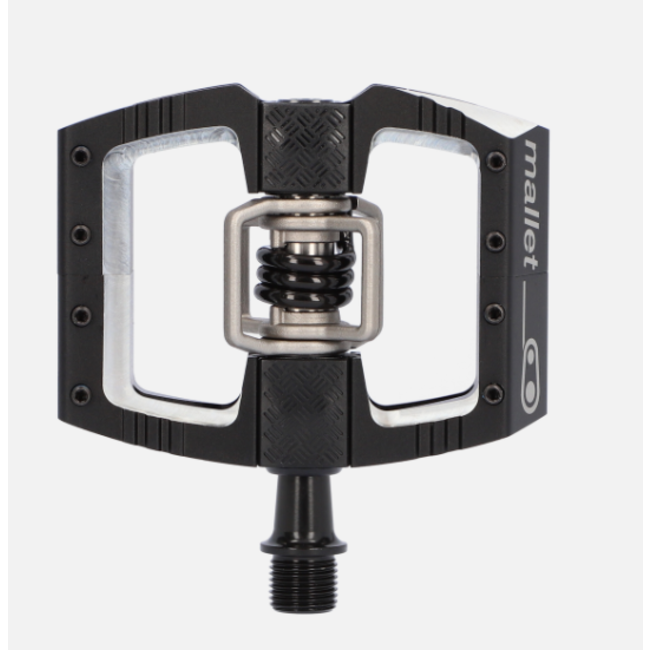

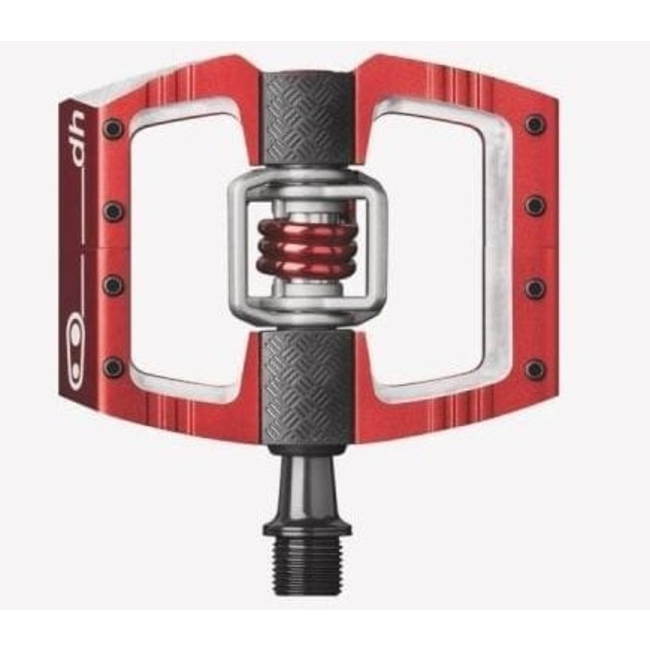

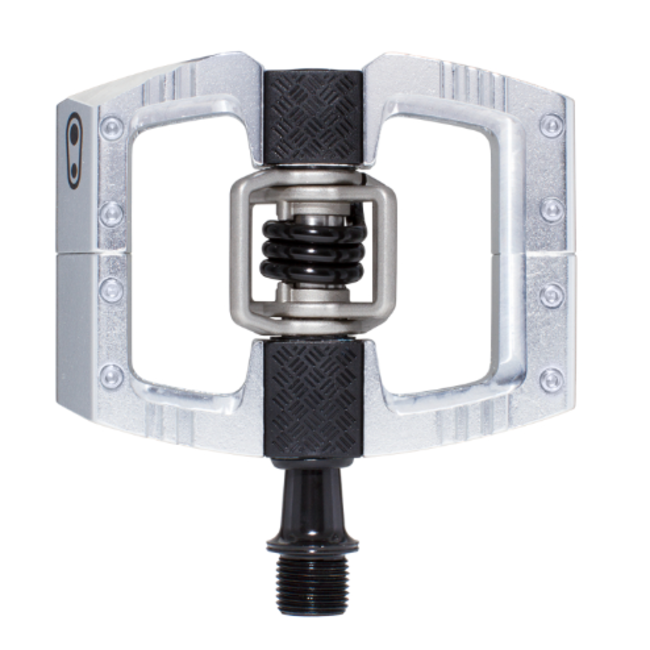

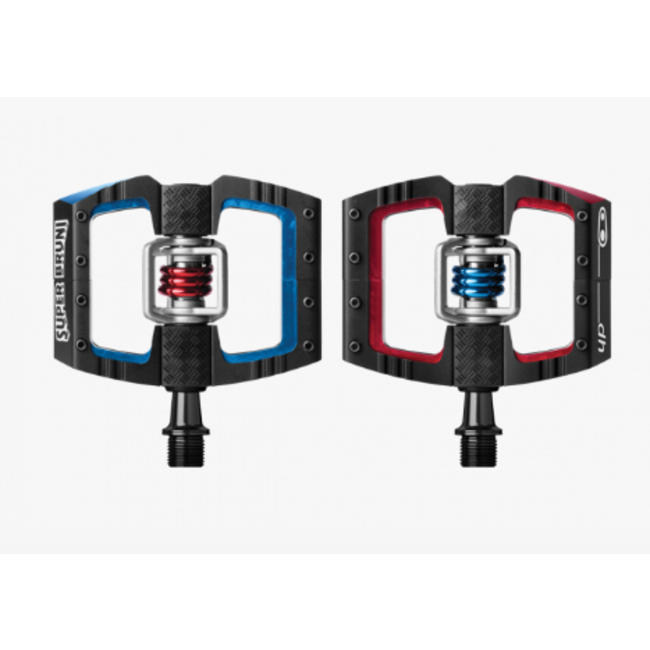

MALLET DH

• Concave platform for secure foothold
• 8 adjustable pins per side for grip
• Traction pad technology customizable interface
• Ribbed body for better traction when unclipped
• Chamfered edges to reduce rock-strikes
• 57mm q-factor for stability at speed
• 4-sided entry / superior mud shedding
• Customizable float & release angle
• Premium bearing & double seal system

Specs

• BODY MATERIAL6061-T6 Aluminum
• BODY DIMS (L X W)100mm x 78mm
• WING MATERIAL17-4PH Stainless
• SPINDLE LENGTH57mm
• TRACTION PINS8 adjustable per side
• PIN LENGTH8mm
• INNER BEARING TYPEIgus LL-glide bearing
• OUTER BEARING TYPEEnduro MAX cartridge bearing
• ENDCAPHex alloy
• SPINDLE MATERIALForged SCM 435 Chromoly Steel
• SPRING MATERIAL300 series stainless steel
• MAX RIDER WEIGHTNo restriction
• WEIGHT479g per pair
• INCLUDED CLEAT TYPE15° / 20° Standard Release, 6° Float
• CLEAT NOTICEThird-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty.
• WARRANTY5 years
