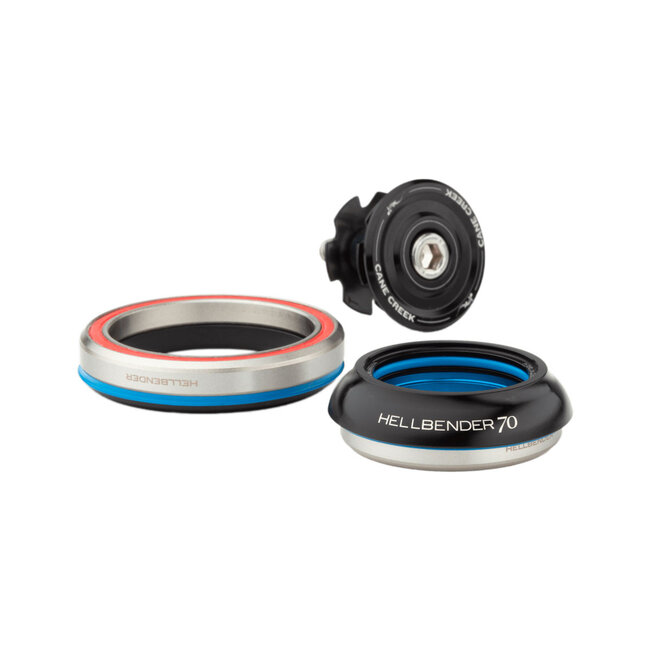

A headset designed to bridge the gap between the 40-series and 110-series headsets. Hellbender 70 has all the design characteristics, sealing elements, and Hellbender bearing found on a premium 110-series headset, at a price closer to a 40-series.
Machined from 6061 T-6 aluminum with a bright-dip black anodized finish, and features a low-friction upper bearing seal and a double-lip lower bearing seal that combine to completely seal cups from external contaminants – delivering exceptional durability and reliability previously limited to our premium 110 series.
The Hellbender 70 also includes our premium stainless steel Hellbender bearing – specifically designed and tested to withstand heavy-duty use and extreme environmental conditions.
Our patented Interlok spacer design provides solid interface between the top cover and spacer stack, meaning they “nest” together and into the top of the bearing cover, which helps minimize shifting under load while riding; and shave 25% in weight off a standard alloy spacer stack
| Cups and Covers |
6061 T-6 Aluminum, Internally contoured and relieved to minimize weight and maximize strength |
|---|---|
| Covers |
Low-friction upper bearing seal completely seals cup from contaminants and is fully captured by the top cover with no loose parts |
| Crown Race |
Alloy Dual-Seal crown race provides excellent seal efficiency with low friction |
| Bearings |
Premium, sealed stainless-steel HELLBENDER bearings ZS44 will take a 41mm bearing All complete Cane Creek Hellbender 70 headset assemblies (top or bottom) will use a 36×45 degree contact angle bearing. |
| Interlok® |
Interlok® spacer compatible |
| Color and Finish |
Bright – Dip anodized Black finish |
| Warranty |
2 years |
| Stack Heights |

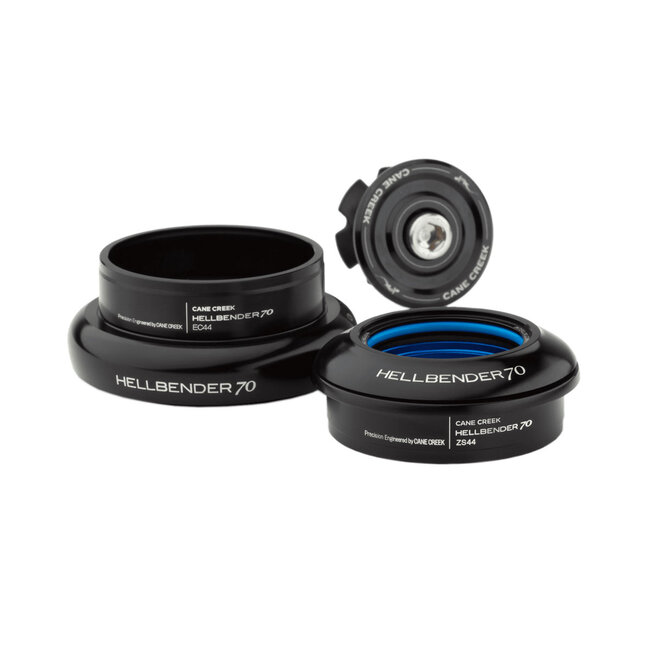

External Cup (EC) — 12mm bottom, ZeroStack (ZS) — 8mm top, 4mm bottom, Integrated (IS) — 9mm top, 1mm bottom |
